Technical points:

1. Stepper motor pulls the film, the screen adjusts the parameters, and the operation is convenient.

2. Strong expansion function, can be connected with packaging device and inflation device to meet the needs of different products.

3. Bag making, filling, metering, sealing, printing date, and product output are completed at one time.

4. Frequency conversion speed regulation, the sealing knife automatically opens when the machine is turned off, which can control unnecessary waste.

Practical packaging range:

Puffed food, peanuts, coffee, small biscuits, etc., suitable for measuring products within 200ml with measuring cups.

Application

Suitable packing applications: leavened food, peanut, coffee, biscuits, granule etc.

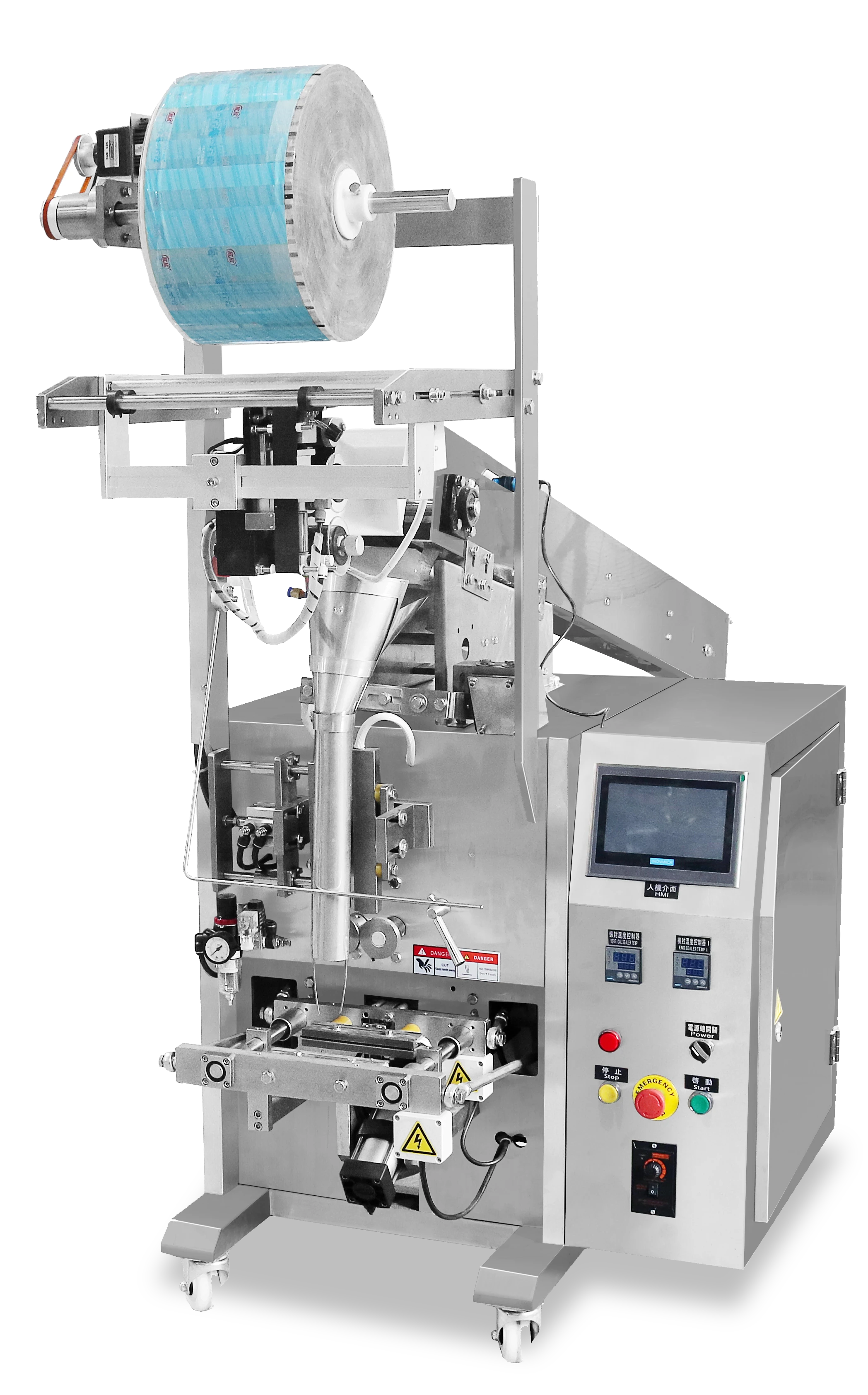

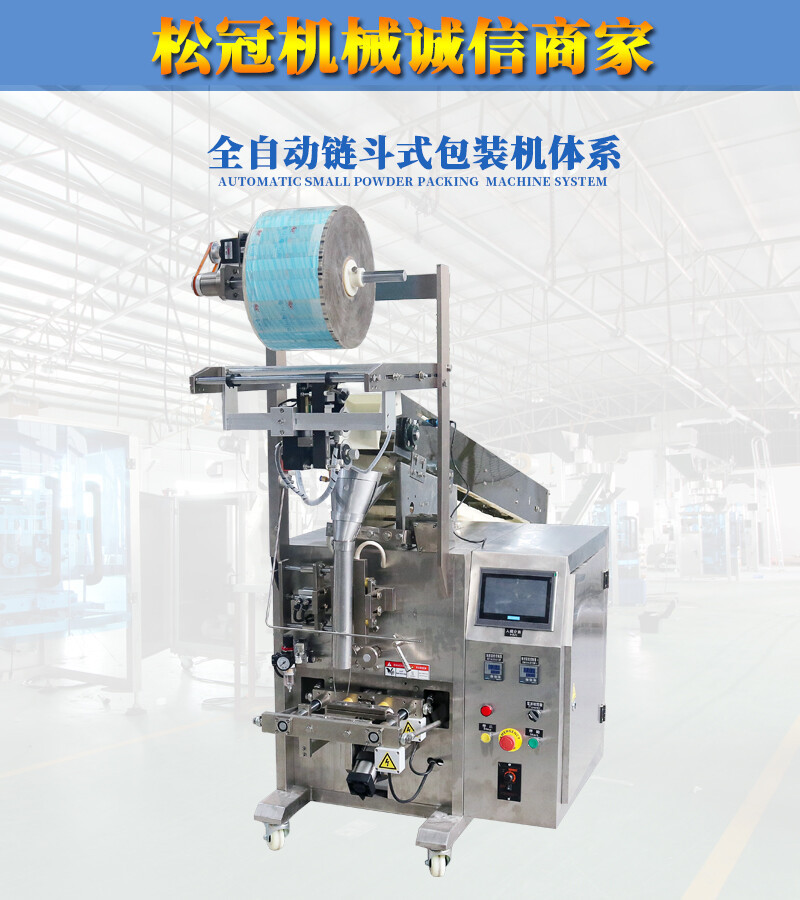

Machine model SG-160

Measuring range 10-200ml

Bag size 50-200mm(L)×40-150mm(W)

Packing speed 30-80Bags/min

Maximum roll width 320mm

Power supply specification 220V50Hz 2Kw

Overall size 2860(L)×755(W)×1540(H)mm
