Product Description

Application Scope:

Various liquids (such as soy sauce, vinegar, fruit juice, laundry detergent, Chinese medicine liquid, etc.), sauces (such as chili sauce, salad dressing, tomato sauce, etc.), solid particles (such as potato chips, hot pot meatballs, red dates, laundry pods, etc.), powders (such as cocoa powder, milk powder, seasoning powder, etc.), mixed materials (such as ready-to-cook meal packs, semi-finished dishes, pickles, etc.), and so on.


Auxiliary Equipment:

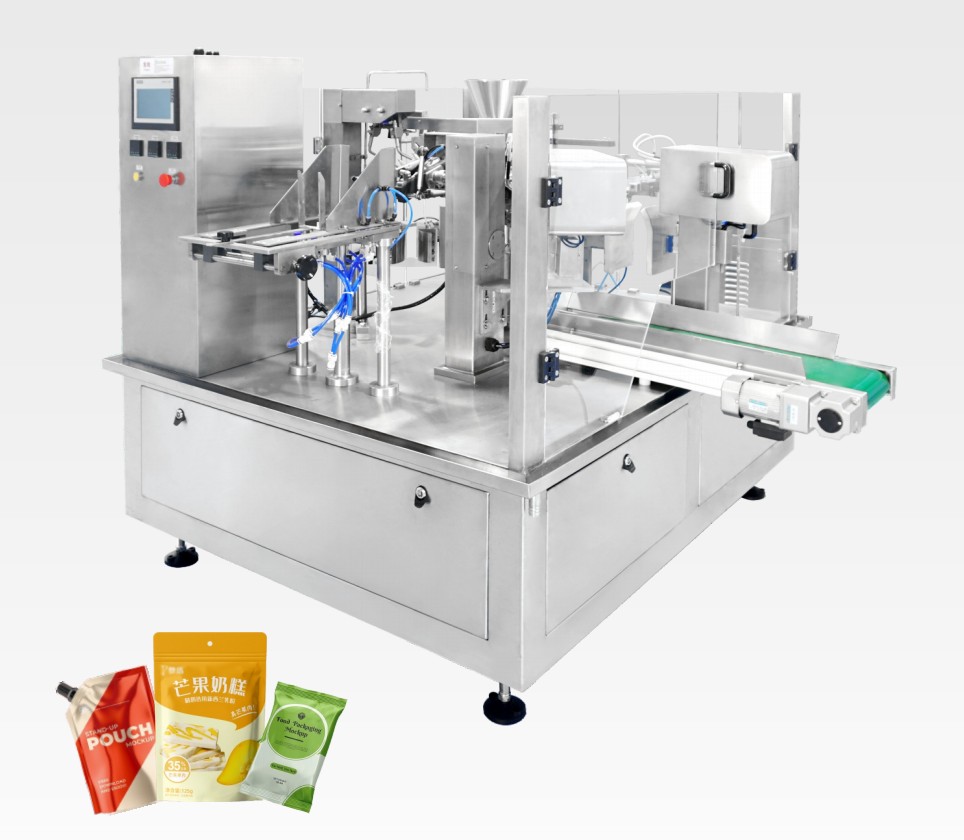

The automatic premade pouch bagging packaging machine series has multiple functions, and when matched with other auxiliary equipment, it can meet the packaging needs of different products.

WPS图片(2)

WPS图片(3)

WPS图片(4)

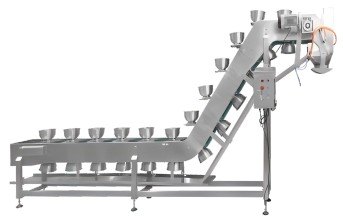

WPS图片(5)

Rotor pump filling machineElectronic combination scaleScrew metering machineBowl elevator

Main technical parameters:

Product model8-2008-2508-300
Packaging weight30-1000g300-2000g500-3000g
Packaging bag sizeW80-200mm;L80-350mmW120-250mm;L120-350mmW180-300mm;L170-450mm
Packaging speed20-60bags/min20-50bags/min10-40bags/min
Host power2.6KW2.6KW2.6KW
Host dimensionL1730*W1900*H1542mmL1730*W1900*H1542mmL1835*W2000*H1600mm
Host weight1.5T1.5T1.5T
Air consumption0.6m³/min0.6m³/min0.6m³/min
Driving power supply3P5W380V50/60HZ
he packaging weight and packaging speed depend on the materials and the condition of the packaging bags.

Solutions:

WPS图片(7)

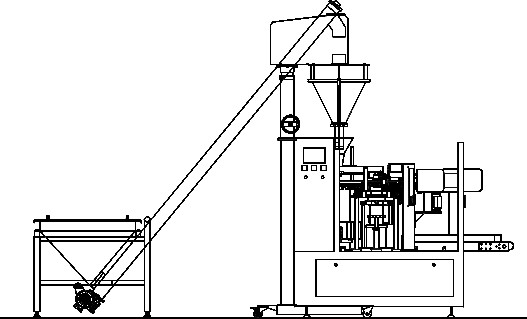

WPS图片(6)
