(I) Main performance and structural features

1. Dual inverter control, bag length is set and cut immediately, no need to adjust the empty run, one-step to save time and film.

2. Human-machine interface, parameter setting is convenient and fast.

3. Fault self-diagnosis function, fault display is clear at a glance.

4. High-sensitivity photoelectric eye color mark tracking, digital input sealing and cutting position, making the sealing and cutting position more accurate.

5. Temperature independent PID control, better suitable for various packaging materials.

6. Positioning stop function, no sticking knife, no waste of film.

7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

8. All controls are realized by software, which is convenient for function adjustment and technology upgrade, and never lag behind.

(II) Scope of application

Suitable for the packaging of soft, long and loose objects such as towels, paper towels, noodles, egg rolls, sausages, squid, popsicles, soft candies, biscuits, fresh fruits, etc.

(III) Optional equipment

1. Coding machine

2. Straight-grain middle sealing wheel

3. Anilox end sealing mold

4. Extra-large touch screen

(IV) Technical specifications

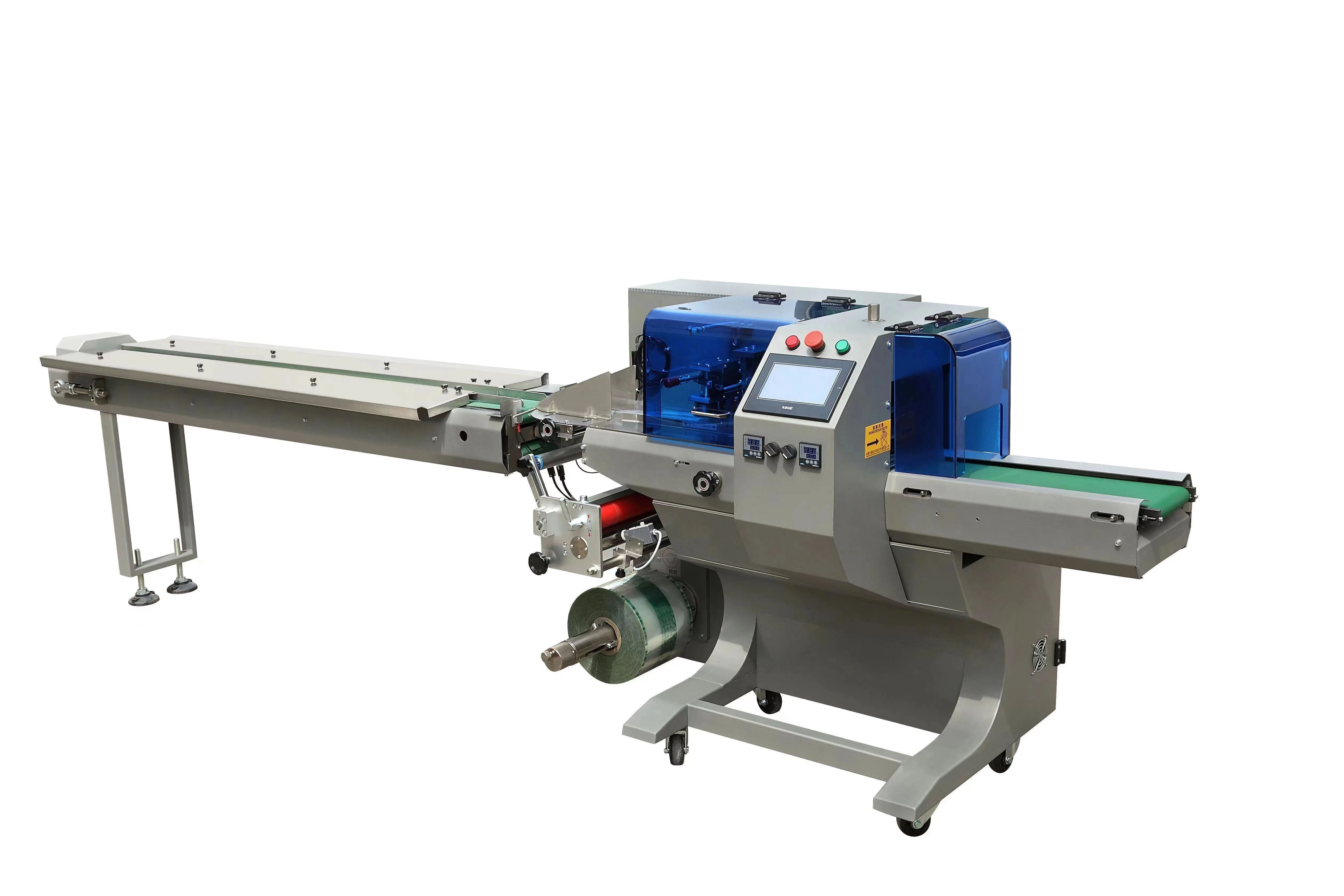

Model SG-350X

Film width 　Max.350mm

Bag length 　65～190mm or 120~280mm

Bag width 　50～160mm

Product height 　Max.45mm

Film roll diameter 　Max.320mm

Packing speed 　40～230 bags/min

Power supply specifications 　220V, 50/60HZ, 2.8KVA

Machine size 　(L)4020×(W)720×(H)1320

Machine weight 　900Kg
